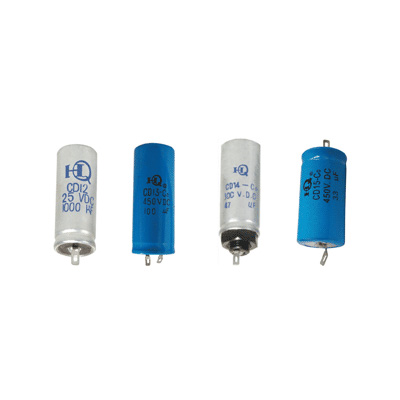

CD12-15 Series Aluminum Electrolytic Capacitors

Features:Suit for use in DC or pulse electronic circuits in instruments.

Technical data:

Item	Characteristics
Temperature range	-40～+85℃	-25～+85℃
Rated voltage range	25～100V	160～550V
Capacitance range	100～2200μF	10～100μF
Capacitance tolerance	-10～+50% ±20%
Leakage current	I≤0.03CR UR+20(μA)
Load life	1000 Hours at 85℃

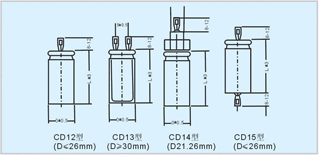

Dimensions:

CD12、CD15                                                                        mm

D±0.5	16	19	21	26
L±2.0	35	50	45	50	60

CD13、CD14                                                                        mm

D±0.5	21	26		30	34		42
L±3.0	45	50	60	60	60	80	80

Nominal capacitance、rated voltage and case size table:

	25	32	50	63	100	160	300	450	500	550
10							19x50	19x50	19x50	26x50
22							19x50	21x45	26x50	26x50
33					16x35	16x35	21x45	26x50 26x60	26x60	26x60
47			16x35	16x35	16x35	16x35	26x50	26x60	26x60	26x60
100	16x35	16x35	16x35	16x35	19x50	21x45 26x60	26x60	34x80
150	16x35	16x35	19x50	19x50	19x50	21x45	30x60	34x80
220	19x50	19x50	19x50	19x50	21x45	21x45	34x60	42x80
330	19x50	19x50	19x50	19x50	26x60	26x60	34x80
470	19x50	19x50	21x45	21x45	30x60	30x60
680	21x45	26x60	26x60	26x60	34x60	34x60
1000	21x45	26x60	26x60	26x60	34x80	34x80
2200	26x60	30x60	30x60	30x60	34x80
